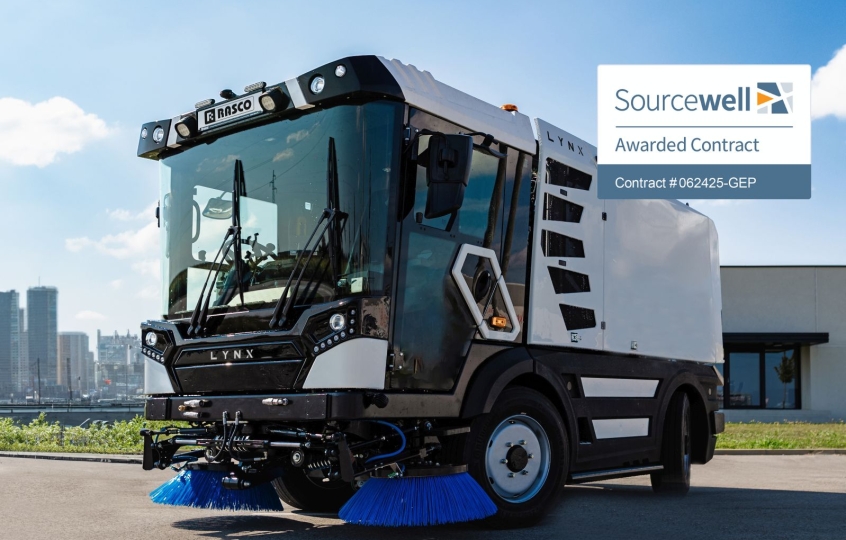

LYNX 5000
The LYNX 5000 sweeper, with a hopper volume of 5 m³, is a testament to state-of-the-art technology and is specially designed to meet different user needs with maximum efficiency and performance.
Photo & Video Gallery
road sweeper that exceeds expectations
THE LYNX 5000 INTRODUCES A NEW ERA IN SWEEPING EXCELLENCE, FEATURING A HOST OF INNOVATIVE BENEFITS THAT REDEFINE THE URBAN SWEEPING EXPERIENCE.
As a part of RASCO’s commitment to sustainability, LYNX 5000 is powered by an environmentally friendly internal combustion engine. Advanced EURO 6 E diesel engine, heart of LYNX 5000, delivers 118 kW of power. This power is then distributed optimally, consuming minimal fuel and reducing emissions.
The powertrain system of LYNX 5000 features an automotive electronically controlled hydrostatic drive ensuring minimal amount of power is used to achieve the desired speed. All hydraulically powered subsystems of the sweeper are powered by a carefully designed hydraulic system with multiple hydraulic pumps ensuring top level cleaning performance, suction power, maneuverability, and reliability.
Advantages
CLEANING EFFICIENCY
Features such as large brushes, wide suction mouth, high suction speed, together with high total water capacity are coordinated to maximise cleaning efficiency. The sweeper has been specifically designed to meet the diverse needs of users while maximizing efficiency and performance.
COMFORT AND VISIBILITY
Taking user comfort to new heights and maximising visibility for safe and efficient work, LYNX 5000 represents what purposeful design looks like.
MANEUVERABILITY
The remarkable manoeuvrability is made possible by the two–wheel drive on the rear axle, which enables fast movement between work sites and promotes efficient sweeping, while the four–wheel steering (4WS) ensures precise control and manoeuvrability during work.
AUTONOMY
The LYNX 5000 can work for an entire shift without having to return to the base. With a hopper of 5 m3, 700+ L of water capacity and 100 L of fuel tank, exceptional operating autonomy is guaranteed.
FUNCTIONAL DESIGN
The distinctive design from LYNX 2000 is successfully transferred to new sweeper edition of LYNX 5000, giving a touch of modern elegance, but also uncompromised visibility, enabling top performance and efficiency.
EASE OF USE
Recognizing that operators have different levels of experience, the LYNX 5000 comes with a set of pre-defined working modes. This allows even the most inexperienced user to start operating the machine almost immediately. For more demanding and advanced users, the control system enables easy setting, customization, and storage of all working parameters.
Main characteristics
General
Empty weight
6500 kg
Total permissible weight
11500 kg
Drive
Model
FPT N45 EURO 6 E
Exhaust treatment
DOC + DPF + SCR + CUC
Gross rated power
118 kW @ 1940 rpm / 118 kW @ 2500 rpm
Maximum torque
580 Nm @ 1250 rpm
Fuel tank volume
100 L
Transport speed max.
50 km/h
Operating speed max.
20 km/h
Gradeability
up to 30%
Sweeping
Disc brush diameter
900 - 1000 mm
Sweeping width (2 brush system)
2540 mm
Sweeping width (3 brush system)
3530 mm
Total volume (Hopper)
5 m³
Discharge height (Hopper)
900 mm standard / 1600 mm high dump
Total water systems
700+ L
The third brush system can be used in several ways: to increase the maximum sweeping width, to sweep both the road and the sidewalk in a single pass, or to dislodge stubborn weeds and dried up mud in front of the standard two brushes. The multifunctionality of the system is achieved by the possible choice of different types of brushes ranging from a soft plastic brush to the weed brush, which consists of hard woven metal cables.
The LYNX 5000 offers two efficient options for unloading waste. The standard tipping method offers a convenient unloading height of 900 mm, while the high dump option goes one step further with an impressive 1600 mm unloading height, facilitated by a powerful push plate mechanism which allows the collected debris to be deposited directly into a standard waste container.
The always-ready manual suction hose mounted on the hopper and a carefully designed suction turbine make the LYNX 5000 a cleaning powerhouse.
All sweepers can be additionally equipped with a hand washer that uses high-pressure water as a cleaning agent. The hand washer quickly and easily cleans corners and similar inaccessible parts of the streets.
LYNX LIVE DEMONSTRATION
LYNX LIVE DEMONSTRATION
Contact us and book a demonstration of the LYNX 5000 compact sweeper.
